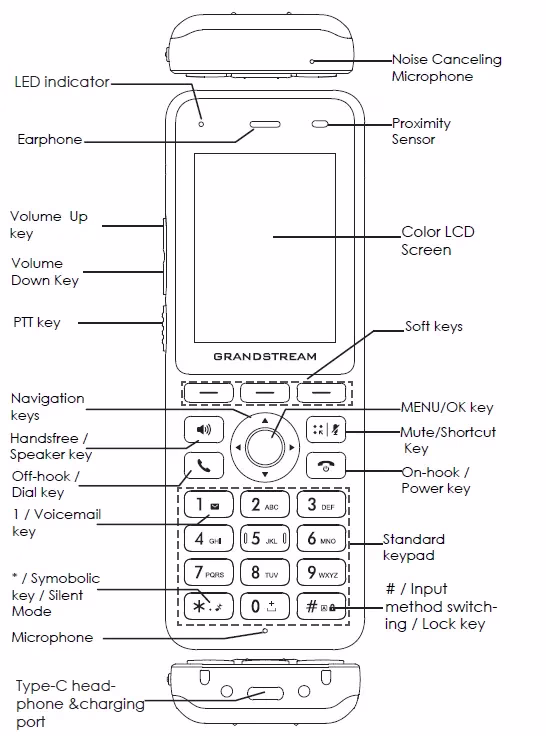

| Key | Description |
|---|---|
| LED indicator | A small light that provides visual notifications for various events like incoming calls, messages, or charging status. |
| Earphone | Delivers audio output. |
| Volume Up key | A button used to increase the volume of audio output. |
| Volume Down Key | A button used to decrease the volume of audio output |
| PTT Key | PTT (Push-to-Talk) button, to initiate PTT call. This button can also be configured to trigger Alarm. |
| Navigation keys | Buttons used to navigate through menus, apps, and interfaces. |
| Off-hook / Dial key | Initiates or answers calls when pressed and also used to dial numbers when making outgoing calls. |
| 1 / Voicemail key | Long pressing this key initiates a call to your voicemail service, allowing you to check for new messages or manage voicemail settings. |
| Standard keypad | A grid of numeric keys used for dialing phone numbers, entering text, and navigating through menus by inputting numbers or letters associated with options. |
| * / Symobolic key / Silent Mode | This key is used to toggle the phone’s silent mode on and off, muting all incoming call and message notifications. |
| Handsfree / Speaker key | Pressing this key enables the phone’s speakerphone function, allowing for hands-free communication during calls. |
| Microphone | Picks up audio earpiece and hands-free calls |
| Type-C headphone & charging port | This port serves a dual purpose, allowing you to connect Type-C headphones for audio output and charging the phone using a compatible Type-C cable. |
| Softkeys | These buttons are assigned a specific function or shortcut, such as launching a specific app, activating a feature, or performing a predefined action. |
| Mute/Shortcut Key | A button that quickly silences incoming calls or notifications when pressed, and may also be customizable to serve as a shortcut for accessing frequently used features. |
| # / Input method switching / Lock key | Does one of the following:
|
| On-hook / Power key | This key serves a dual purpose, ending calls or switching off the phone when pressed for a longer duration, and turning on the phone or waking it from sleep mode when pressed briefly. |
| MENU/OK key | This key serves a dual purpose, opening the menu interface or confirming selections, such as when navigating through apps or options. |
| Softkeys | Correspond to functions displayed on the LCD. These functions change depending on the current context. |
| Color LCD Screen | 2.4 inch (240×320) IPS color LCD screen |
| Proximity sensor | The proximity sensor can detect when the phone is close to the caller’s face, turning off the display to prevent accidental touches and save battery life. |
| Noise Canceling Microphone | A microphone equipped with technology to reduce background noise, resulting in clearer audio during calls by minimizing unwanted sounds from the surrounding environment. |
